Mini Boat

Step-by-step process for how to set up our mini boat.

Resources

• Rigging Instructions
• Parts
•

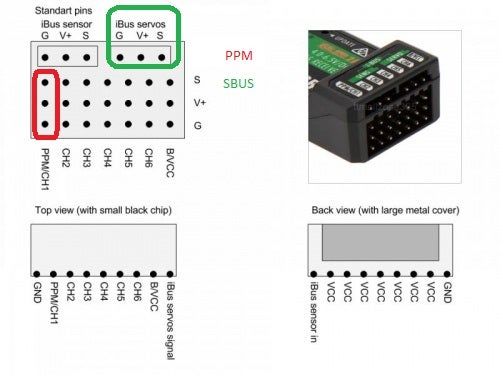

Relevant FS-IA6B Controls:

• CH1: Right Analog X (Rudder)

• CH2: Right Analog Y

• CH3: Left Analog Y (Sail)

• CH4: (Physical pin is borked)

• CH5: None?

• CH6: Front Right Switch 1

About the Boat

Set Up

1. Plug the Power and GND into V+ and GND on the FS-IA6B Receiver
2. Plug the sail into CH3 (SIGNAL facing up)
3. Plug the rudder into CH1 (SIGNAL facing up)
